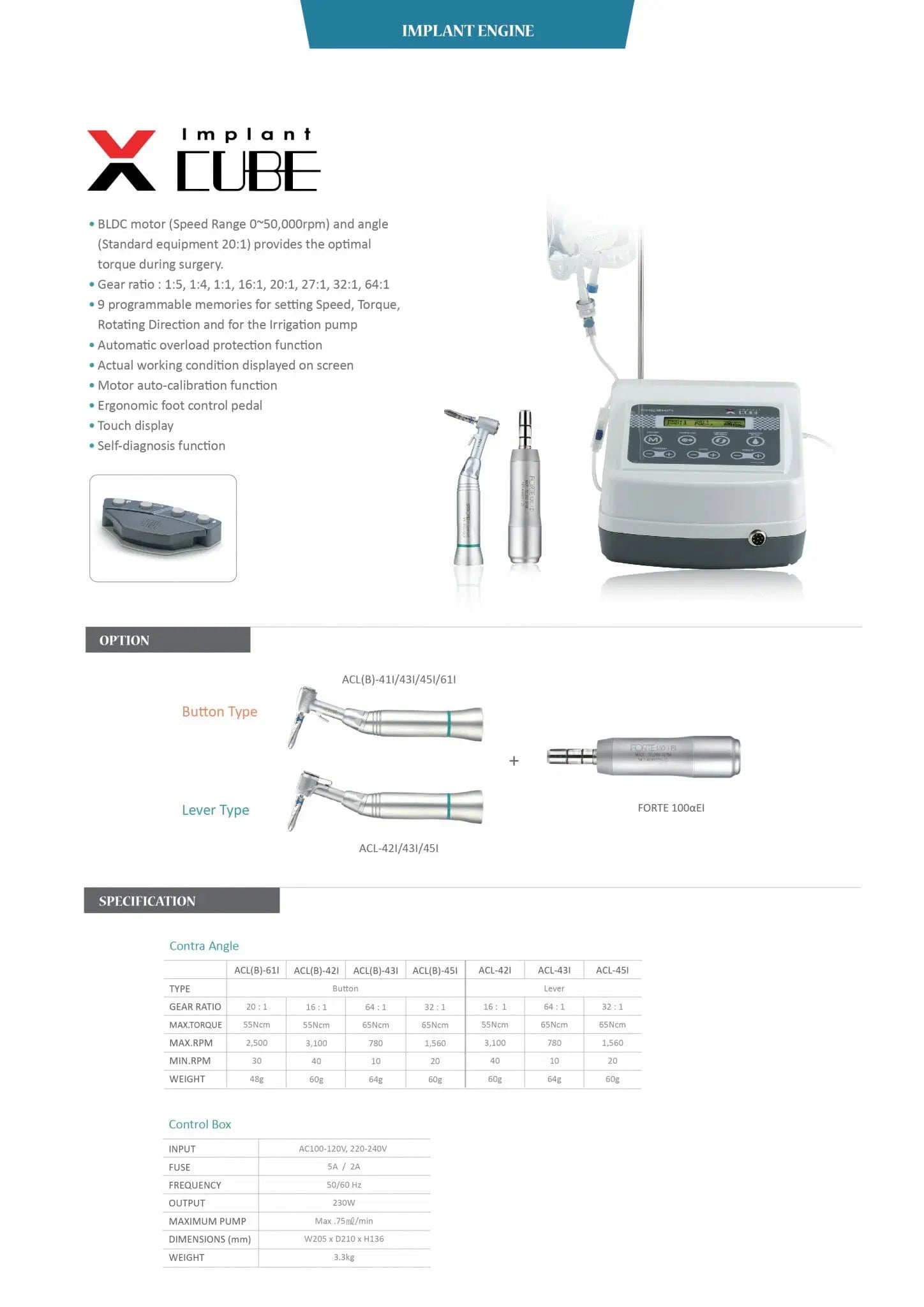

X-CUBE IMPLANT MOTOR SET (20:1)

Economical and simple to use implant motor “XCUBE”

• Motor auto-calibration function
• E-type motor with ISO standard connection
• Maximum speed at 2,500 RPM with 20:1 gear ratio
• Maximum torque at 55 N.cm with 20:1 gear ratio
• Actual working condition displayed on screen
• Automatic overload protection system
• 9 programs memory function
• Motor & angle are autoclavable

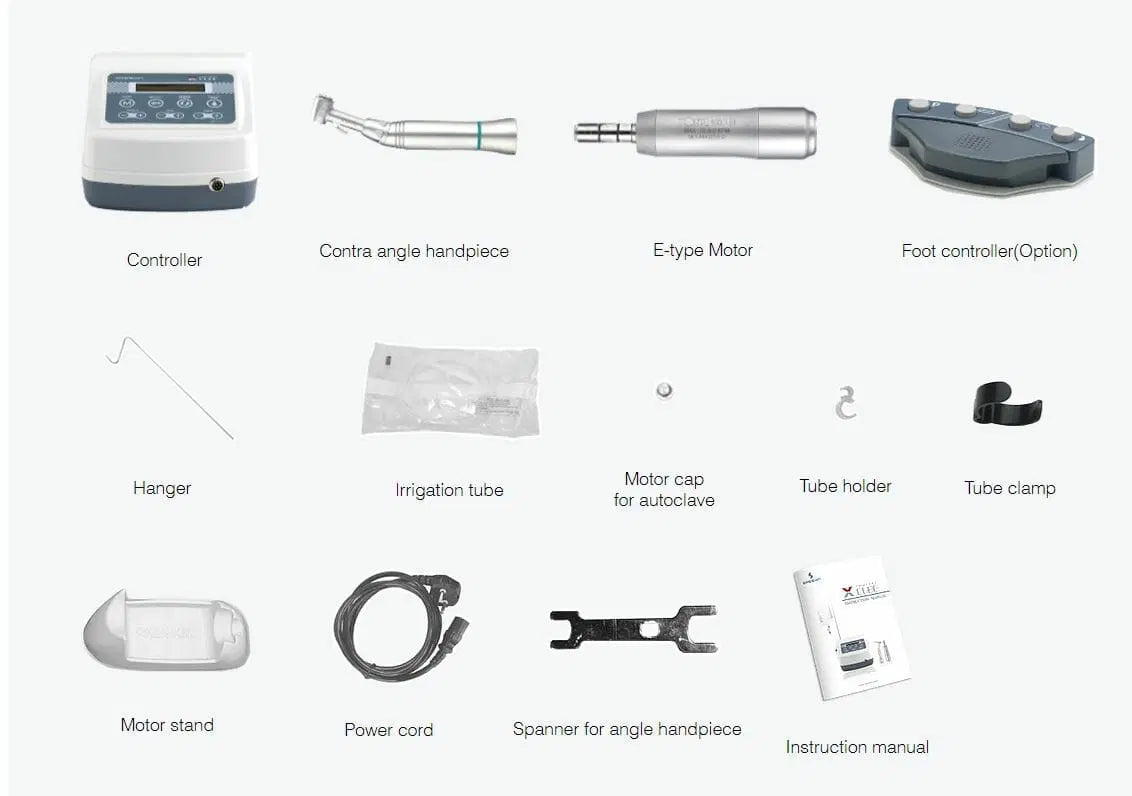

Contra Angle Handpiece (ACL(B)-61I)

• Non-optic
• 20:1
• Max 2,500 RPM
• Weight 2.2 oz

E-type Motor (FORTE 100αEI)

• Non-optic
• Max. 50,000 RPM(1:1)
• Weight 9.5 oz

Control box (X-CUBE)

• Dimension W205 x D210 x H136
• Weight 7.3 lbs
• Max Torque 55 N.cm
